(draft) The Piranha Huller (Draft)

Main Parts List for the Piranha Huller

Note: Items with the duplicate names are alternative options for item to purchase!

Note: Prices at Amazon seem to regularly change, so the prices will likely differ slightly from the prices here.

This is the preliminary parts listing for the Piranha Huller. This will be reviewed by Don, and confirmed when Dave builds a Piranha Huller

Please feel free to help us identify any additional sources for parts. If you found any other sources for parts, please email the name, URL and Price for each part to Dave (Web Admin).

Name/URL Vendor Details Quantity Total Price Notes
Name/URL:Piranha Roller Vendor:Amazon Details:Piranha 90 durometer Polyurethane Roller, Bore: 1-1/16", OD: 2-1/4", Width: 3" Quantity:1 X 2 = 2 Total Price:$40 Notes:
Name/URL:Piranha Roller Vendor:Piranhafab Details:Piranha 90 durometer Polyurethane Roller, Bore: 1-1/16", OD: 2-1/4", Width: 3" Quantity:1 X 2 = 2 Total Price:? Notes:
Name/URL:12 mm Shafts Vendor:Amazon Details:Linear Motion Rods,2PCS 12mm x 400mm (0.472 x 15.75 inches) Case Hardened Chrome Linear Rail Shaft Guide for 3D Printer,DIY,CNC Metric G6 Tolerance Quantity:1 X 2 = 2 Total Price:$17 Notes:Hardened, but prefer not hardened.
Name/URL:Roller Centering Collars Vendor:Amazon Details:2 Piece Centering Collars for Rollers, Bore: 1/2", OD: 1-1/8 - Jeremywell 1/2" Bore Single Split Set Screw Shaft Collar OD 1-1/8" Width 13/32" (4 PCS) Quantity:1 X 4 = 4 Total Price:$9 Notes:
Name/URL:Roller Centering Collars Vendor:Amazon Details:2 Piece Centering Collars for Rollers, Bore: 1/2", OD: 1-1/8 - KZNANZN Two-Piece Clamping Shaft Collar 1/2" Bore Black Oxide Set Screw Style 4Pcs Quantity:1 X 4 = 4 Total Price:$10 Notes:
Name/URL:Roller Centering Collars Vendor:Global Details:2 Piece Centering Collars for Rollers, Bore: 1/2", OD: 1-1/8 - Global Two-Piece Clamping Collar, 1/2", Black Oxide Steel Quantity:1 X 4 = 4 Total Price:$21 Notes:
Name/URL:Feed Shaft Collars Vendor:Amazon Details:12mm bore shaft collars, 20mm outer diameter - HARFINGTON 4pcs Shaft Collar 12mm Bore Aluminum Alloy Set Screw Shaft Collars, 20mm OD, 8mm Width, for Wheel Barrow Axle, Gearbox Assemblies, CNC Machine Tools, Industry, Anodization Quantity:1 X 8 = 8 Total Price:$11 Notes:
Name/URL:Feed Shaft Collars Vendor:Amazon Details:1/2” bore shaft collars, 1” outer diameter - Zeberoxyz 8pcs 1/2" Bore Shaft Collars Sets-Screw Style Zinc Plated Solid Steel Lock Collars with 1" Outer Diameter and 7/16" Width for Drive shafts, The Automotive Industry etc.(1/2", Zinc Plated) Quantity:1 X 8 = 8 Total Price:$11 Notes:
Name/URL:Handle Vendor:Amazon Details:SeaSense REPLACEMENT WINCH HANDLE, 7 1/2" Power Grip Handle Quantity:1 Total Price:$21 Notes:
Name/URL:Handle Vendor:Amazon Details:8.1in Winch Handle, Ergonomic Crank Comfort Power-Grip Replacement Accessory for Marine Boat Trailer Quantity:1 Total Price:$16 Notes:
Name/URL:Handle Shaft Collars Vendor:Amazon Details:Shaft Collars for Handle Quantity:1 x 2 = 2 Total Price:$7 Notes:Are these needed?
Name/URL:Chain Vendor:Amazon Details:#25 Roller Chain Quantity:10 foot Total Price:$17 Notes:This one comes with 2 Connecting Links
Name/URL:Chain Links Vendor:Amazon Details:Connecting Links for #25 Chain Quantity:1 X 5 = 5 Total Price:$6 Notes:
Name/URL:10 Tooth Sprocket Vendor:Amazon Details:uxcell 10 Tooth Roller Sprocket B Type, 25 Chain, Single Strand 1/4" Pitch, 10mm Bore Black Oxide C45 Carbon Steel with Set Screws for ISO 04C Quantity:1 Total Price:$8 Notes:
Name/URL:19 Tooth Sprocket Vendor:Amazon Details:uxcell 19 Tooth Roller Sprocket B Type, 25 Chain, Single Strand 1/4" Pitch, 12mm Bore Black Oxide C45 Carbon Steel with Set Screws for ISO 04C Quantity:3 Total Price:$30 Notes:
Name/URL: 20 tooth Tensioner Sprocket Vendor:Amazon Details:uxcell #25 Chain Idler Sprocket, 12mm Bore 1/4" Pitch 20 Tooth Tensioner, Black Oxide Finish C45 Carbon Steel with Insert Single Bearing for ISO 04C Chains Quantity:1 Total Price:$12 Notes:
Name/URL:Shaft Support Bearings Vendor:Amazon Details:Sydien 4Pcs 12mm Zinc Alloy Shaft Support Self Aligning Pillow Block Flange Bearing for CNC,KFL001 Quantity:2 X 4 = 8 Total Price:$26 Notes:
Name/URL:M12 Bolt Sets Vendor:Amazon Details:M12 x 75 mm bolts, nuts, washers, and lock washers Quantity:1 X 4 = 4 Total Price:$12 Notes:
Name/URL:Feeder Sandpaper Tubes Vendor:Amazon Details:Sandpaper tubes, Diameter: 1", Width: 1" Quantity:1 X 10 = 10 Total Price:$15 Notes:Only need 3
Name/URL:Epoxy Putty Vendor:Amazon Details:JB Weld steel stick epoxy putty Quantity:1 X 2 = 2 Total Price:$13 Notes:
Name/URL:Epoxy Putty Vendor:JB Weld Details:JB Weld steel stick epoxy putty Quantity:2 Total Price:$16 Notes:
Name/URL:Compression Springs Vendor:Amazon Details:various weight compression springs 8mm od, 20mm long (for 3d printers) Quantity:set Total Price:$15 Notes:Need only the ??? springs

Various Items for the Piranha Huller (you may have already)

Note: Items with the duplicate names are alternative options for item to purchase!

This is the preliminary parts listing for the Piranha Huller. This will be reviewed by Don, and confirmed when Dave builds a Piranha Huller

Please feel free to help us identify any additional sources for parts. If you found any other sources for parts, please email the name, URL and Price for each part to Dave (Web Admin).

Name/URL Vendor Details Quantity Total Price Notes
Name/URL:Angle Bar Vendor:Amazon Details:VERNUOS 6 PCS 1" x 1"x 1/8" Aluminum Angle 6061, 12" Length, T6511 Mill Stock, 1/8" Thick Quantity:6 ft. Total Price:$22 Notes:2 foot or more to be cut into L brackets
Name/URL:Angle Bar Vendor:Home Depot Details:1 in. x 36 in. Aluminum Angle Bar with 1/16 in. Thick Quantity:3 ft. Total Price:$9 Notes:2 foot or more to be cut into L brackets
Name/URL:Foam Weather Strip Vendor:Amazon Details:Frost King R734H Sponge Rubber Foam Tape 3/4" W X 7/16" H X 10' L, Black Quantity:10 ft Total Price:$6 Notes:
Name/URL:Foam Weather Strip Vendor:Home Depot Details:3/4 in. x 7/16 in. x 10 ft. Black High-Density Rubber Foam Weatherstrip Tape Quantity:10 ft Total Price:$7 Notes:
Name/URL:Wood Boards Vendor:Home Depot Details:1" x 8" x 4 foot pine board Quantity:1 Total Price:$9 Notes:

(Draft) Feeder Roller Axel Construction (Draft)

This step will be the construction of the feeder roller axel.

Warning: Working with tools can be dangerous, so always use caution. I am familiar with working with these tools, and cannot guarantee that the techniques I use will necessarily be safe for you to use. I am including these photos and techniques to help you plan out your project, and to provide some guidance.

This will involve cutting an axel, and mounting three sanding tubes onto four feed shaft collars.

The instructions for this step can be found in the Piranha Roller Video between 22:28 to 26:30 minutes within the video.

  1. Cut (at least) one of the axels in half.

    1. Mark the halfway point

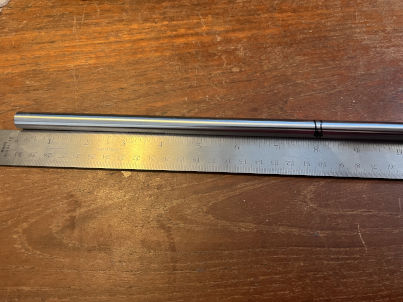

      Using a permanent marker, make a mark at 7-7/8 inches from each end. Note: The photo shows the marks measured from both ends.

    2. Prepare to cut the hardened steel rod.

      There may be other ways to cut the hardened steel axel, but based upon what I read, using a cut-off wheel on an angle grinder seems the best way to do it. I considered using my compound mitre saw with a carbide blade, but I didn't want to ruin my existing carbide blade from overheating, and I knew my angle grinder with a cord would be strong enough.

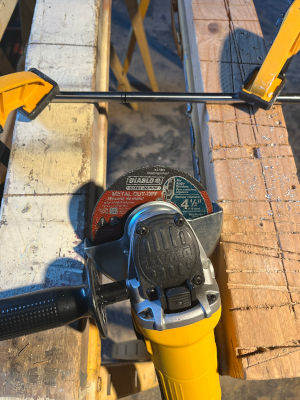

      I secured the axel between two saw horses, and put my 4-1/2 inch metal cut-off blade (securely) on my angle grinder. I found that clamping the axel between onto two saw horses was sufficient. I was concerned that they might loosen, but they turned out to be secure.

    3. Start cutting the rod with an angle grinder.

      Cut through the axel with the angle grinder cutter blade. Note: the metal gets hot, so I stopped regularly, to let it cool some.

    4. Stop when axel pinches the blade.

      When the axel starts pinching the blade, stop cutting.

      Bend the blade at the cut, then finish the cut.

    5. Remove the burrs from axel where it was cut.

      I used my angle grinder with a grinder attachment to remove the sharp edges from the cut. If I had a bench grinder, I would have used that for a more uniform grind.
